Twin track sliding doors with a bottom carriage system. Systems included in this line are based on tracks characterised by a narrow width. Doors built on these tracks do not unnecessarily take up too much space within the wardrobe; however they still allow the use of ergonomic handles with a good grip. You find two systems: GEMINI 10 and GEMINI 16. The systems differ from each other in door construction, but use the same top and bottom track, which enables the easy choice of door filling technologies. We can choose between frame system GEMIMI 10, suitable for 4mm glass or mirror, and board system GEMINI 16, based on 16mm board. The advantage of this system is that the changes in door technology are not followed by the need for track change, nor does this affect the space taken inside the wardrobe.

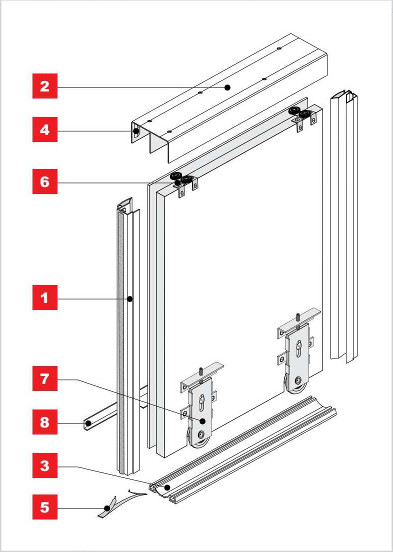

1A – Handle FOCUS 16 mm
1B – Handle FIESTA 16 mm
1C – Handle UNIVERSAL 16 mm
1D – Handle FAVRYT 18 mm
2 – Top track GEMINI
3 – Bottom track ELEGANT
4 – Positioner for top track DUO
5 – Stopper for bottom carriage HI-TEC
6A – Guiding carriage FOCUS WPFc.-DUO
6B – Soft close mechanism SEVROMATIC
7 – Bottom carriage WD 18 V HI-TEC
8A – Angle section MINI 11 x 17 mm
8B – Angle section K2 18 x 19 mm
OPTIONAL EXTRA:
9A – Mid-rail S10
9B – Mid-rail S20
10 – C-profile C16
